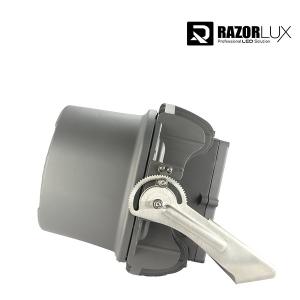

Football Field 140F Led Stadium Lights 1000 Watt 5700K Sports Lighting Fixtures

Product Categories
Xi'an Razorlux Optoelectronic Technology Co., Ltd.
Contact Now

Football Field 140F Led Stadium Lights 1000 Watt 5700K Sports Lighting Fixtures

Place of Origin : Shaanxi, China

Brand Name : Razorlux

Model Number : RGL-1000P-L15

Certification : ce, LVD, RoHS, Saa

Packaging Details : 1.EPS Foam+carton(ONE UNIT PER CARTON)
2.Carton Size(mm):550*450*415mm
3.One 20'' Container can accept 250 Units

Supply Ability : 5000 Piece/Pieces per Month

Price : $1,120.00 - $1,300.00/Pieces

Color Temperature(CCT) : 5700K (2700 ~ 6500K available on request)

Lamp Luminous Efficiency(lm/w) : 100

Lighting solutions service : Lighting and circuitry design, DIALux evo layout

Working Time (hours) : 50000

Input Voltage(V) : 80 ~ 360Vac, 400 ~ 600Vac

Beam Angle(°) : 15° 20° 60° 120° 140°X60°, 15° 20° 60° 120° 140°X60°

Lamp Body Material : Aluminum & Powder coating

IP Rating : IP67

Application : Sports Stadiums

Lamp Luminous Flux(lm) : 100,000 lm, 100,000 lm

Working Temperature(℃) : -40C~60C/40F~140F, -40C~60C/40F~140F

Warranty(Year) : 5-Year

Product Name : football field 1000 watt led flood light

Power : 1000w

Color Temperature : 5700K (2700 ~ 6500K available on request)

Contact Now


New technique chip technology outdoor garden lighting system ip67 football field 1000 watt led flood light
Description of 1000 watt led flood light.
1000 watt stadium floodlights can reach 120,000lumen, these 1000w Stadium Floodlights are perfect for basketball court, football field, tennis court and so on. If use it to replace HID lamps, it can keep 80% lumen maintenance. And the 1000 watt led stadium lighting can work over 50,000hours.
Model
1000P-L15
1000P-L20
1000A-L60
1000A-L120
1000A-L140
Beam Angle
15°
20°
60°
120°
140°x60°
Stable Flux
(5700K after 1 hour)
100,000 lm
105,000 lm
110,000 lm
120,000 lm
102,000 lm
Dimension (mm)
671x405x374mm 671x405x322mm 671x405x204mm

Power Consumption
LEDs
900W
Driver
100W
Total
1,000W
Replace HID Lamp
2000 ~ 3000W
Net Weight
29kg (64lbs) with stainless steel floodlight bracket
Color Temperature
5700K (2700 ~ 6500K available on request)
Color Rendering
≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life
≥50000Hrs
Housing Material
Aluminum
Coating
Zinc Rich Paint
IP Class
IP 65 (Upgradeable to IP 67)
Insulation Class
Class I
Working Temperature
-40 ~ 60C / -40 ~ 140F
Working Humidity
10% ~ 95%
AC Input
80 ~ 360Vac, 400 ~ 600Vac
DC Input
100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD
<10%
Power Factor
≥0.98
Warranty
LED Module
5 year
Driver
5 year
Housing
10 year



Football Field 140F Led Stadium Lights 1000 Watt 5700K Sports Lighting FixturesFootball Field 140F Led Stadium Lights 1000 Watt 5700K Sports Lighting Fixtures

Features & Specifications of 1-10V Dimmable led flood light 400Watt

  • Patented Multi-function design, suitable for all working environments.
  • Rated Power: 400W-1200W
  • Input Voltage: AC90-305, DC127-431
  • Color Temperature: 2700K-6500K
  • Lamp Efficiency: 130LM/W
  • Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
  • CRI: Ra>75
  • IP Grade: IP65/IP67
  • Bracket: Stainless Steel
  • Net Weight: 15KG
  • Warranty: 5 Years

FAQ:

1. Are you a factory or trading company:

We are a factory located in Xi'an China, established in 2006.

2. What is your product range?

Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.

3. How many days of production will the order take?

Normally 7-15 days, depending on the order quanity.

4. How do you ship goods abroad?

For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.

5. Does your product support smart control like sensor, dimming, DALI, etc.

They support all of these features, please tell our sales during your negotiation when you need such features.

6. How do you deal with failed lights?

During the warranty period, we will send customer free part or lamp after checking the evidence. After warranty, we only charge the component fees, no extra charge for our customer.
